DDS信號發生器任意波形發生器VHDL代碼

名稱：DDS信號發生器波形發生器（代碼在文末付費下載）

軟件：Quartus

語言：VHDL

要求：

在EDA平臺中使用VHDL語言為工具，設計一個常見信號發生電路，要求：

1.?能夠產生鋸齒波，方波，三角波，正弦波共四種信號；

2.?信號的頻率和幅度可以通過按鍵調節；

3.?采用模塊化設計，包含但不局限于：調頻模塊，調幅模塊，波形的選擇與切換模塊等；

演示視頻

部分代碼展示

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
USE?ieee.std_logic_unsigned.all;
--DDS頻率等于clk*N/2^13,clk為輸入時鐘，N為頻率控制字frequency；2^13是因為ROM里面存儲了8192個點，相位累加器位寬為13位
ENTITY?DDS_top?IS
???PORT?(
??????clk_in??????:?IN?STD_LOGIC;--時鐘
rst_p:?IN?STD_LOGIC;--復位
??????wave_select??:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);--01輸出sin，10輸出方波，11輸出三角波，00鋸齒
??????frequency_key????:?IN?STD_LOGIC;--頻率控制按鍵
??????amplitude_key????:?IN?STD_LOGIC;--幅值控制按鍵
wave?????????:?OUT?STD_LOGIC_VECTOR(15?DOWNTO?0)--輸出波形
???);
END?DDS_top;
ARCHITECTURE?behave?OF?DDS_top?IS
--例化模塊
--波形選擇模塊
???COMPONENT?wave_sel?IS
??????PORT?(
?????????clk_in??????:?IN?STD_LOGIC;
?????????wave_select??:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);
?????????douta_fangbo?:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????douta_sanjiao?:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????douta_sin????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
douta_juchi??:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????wave?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
??????);
???END?COMPONENT;
???
--相位累加器模塊
???COMPONENT?Frequency_ctrl?IS
??????PORT?(
?????????clk_in??????:?IN?STD_LOGIC;
?????????frequency????:?IN?STD_LOGIC_VECTOR(9?DOWNTO?0);
?????????addra????????:?OUT?STD_LOGIC_VECTOR(12?DOWNTO?0)
??????);
???END?COMPONENT;
--ROM表
COMPONENT?sin_ROM?IS
PORT
(
address:?IN?STD_LOGIC_VECTOR?(12?DOWNTO?0);
clock:?IN?STD_LOGIC??:=?'1';
q:?OUT?STD_LOGIC_VECTOR?(7?DOWNTO?0)
);
END?COMPONENT;
--ROM表
COMPONENT?fangbo_ROM?IS
PORT
(
address:?IN?STD_LOGIC_VECTOR?(12?DOWNTO?0);
clock:?IN?STD_LOGIC??:=?'1';
q:?OUT?STD_LOGIC_VECTOR?(7?DOWNTO?0)
);
END?COMPONENT;
--ROM表
COMPONENT?sanjiao_ROM?IS
PORT
(
address:?IN?STD_LOGIC_VECTOR?(12?DOWNTO?0);
clock:?IN?STD_LOGIC??:=?'1';
q:?OUT?STD_LOGIC_VECTOR?(7?DOWNTO?0)
);
END?COMPONENT;
--ROM表
COMPONENT?juchi_ROM?IS
PORT
(
address:?IN?STD_LOGIC_VECTOR?(12?DOWNTO?0);
clock:?IN?STD_LOGIC??:=?'1';
q:?OUT?STD_LOGIC_VECTOR?(7?DOWNTO?0)
);
END?COMPONENT;
--按鍵頻率控制
COMPONENT?Frequency_add?IS
???PORT?(
??????clk_in????:?IN?STD_LOGIC;
??rst_p?????:?IN?STD_LOGIC;
??frequency_key?????:?IN?STD_LOGIC;
??????frequency??:?OUT?STD_LOGIC_VECTOR(9?DOWNTO?0)--頻率控制字，10位位寬，變化范圍可以為1~1000
???);
END?COMPONENT;
--按鍵幅值控制
COMPONENT?amplitude_add?IS
???PORT?(
??????clk_in????:?IN?STD_LOGIC;
??rst_p?????:?IN?STD_LOGIC;
??amplitude_key?????:?IN?STD_LOGIC;
??????amplitude??:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)--幅值
???);
END?COMPONENT;
???
???SIGNAL?addra?????????:?STD_LOGIC_VECTOR(12?DOWNTO?0);
???SIGNAL?douta_fangbo??:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?douta_sanjiao?:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?douta_sin?????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
SIGNAL?douta_juchi?????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?wave_temp?????????:??STD_LOGIC_VECTOR(7?DOWNTO?0);--波形
???SIGNAL?frequency????:?STD_LOGIC_VECTOR(9?DOWNTO?0);--頻率控制字，控制輸出波形頻率，值越大，頻率越大
???SIGNAL?amplitude????:?STD_LOGIC_VECTOR(7?DOWNTO?0);--幅值控制字，值越大，幅值越大
BEGIN
--按鍵頻率控制
i_Frequency_add:?Frequency_add
???PORT?MAP(
??????clk_in????=>?clk_in,
??rst_p?????=>?rst_p,
??frequency_key??=>?frequency_key,
??????frequency??=>?frequency--頻率控制字，10位位寬，變化范圍可以為1~1000
???);
--按鍵幅值控制
i_amplitude_add:?amplitude_add
???PORT?MAP(
??????clk_in????=>?clk_in,
??rst_p?????=>?rst_p,
??amplitude_key??=>?amplitude_key,
??????amplitude??=>?amplitude--幅值控制字
???);
???
???--方波ROM,存儲波形數據
???i_fangbo_ROM?:?fangbo_ROM
??????PORT?MAP?(
?????????clock???=>?clk_in,
?????????address??=>?addra,
?????????q??=>?douta_fangbo
??????);
???
???
???--三角波ROM,存儲波形數據
???i_sanjiao_ROM?:?sanjiao_ROM
??????PORT?MAP?(
?????????clock???=>?clk_in,
?????????address??=>?addra,
?????????q??=>?douta_sanjiao
??????);
???
???
???--sin波ROM,存儲波形數據
???i_sin_ROM?:?sin_ROM
??????PORT?MAP?(
?????????clock???=>?clk_in,
?????????address??=>?addra,
?????????q??=>?douta_sin
??????);
???--鋸齒波ROM,存儲波形數據
???i_juchi_ROM?:?juchi_ROM
??????PORT?MAP?(
?????????clock???=>?clk_in,
?????????address??=>?addra,
?????????q??=>?douta_juchi
??????);
???
???
???--相位累加器
???i_Frequency_ctrl?:?Frequency_ctrl
??????PORT?MAP?(
?????????clk_in????=>?clk_in,
?????????frequency??=>?frequency,--頻率控制字
?????????addra??????=>?addra--輸出地址
??????);
???
???
???--波形選擇控制
???i_wave_sel?:?wave_sel
??????PORT?MAP?(
?????????clk_in????????=>?clk_in,
?????????wave_select????=>?wave_select,--01輸出sin，10輸出方波，11輸出三角波
?????????douta_fangbo???=>?douta_fangbo,--方波
?????????douta_sanjiao??=>?douta_sanjiao,--三角
?????????douta_sin??????=>?douta_sin,--正弦
douta_juchi????=>?douta_juchi,--鋸齒
?????????wave???????????=>?wave_temp--輸出波形?
??????);
???
wave<=wave_temp*amplitude;--波形乘以幅值
END?behave;

設計文檔(文檔點擊可下載)：

DDS原理

1. 工程文件

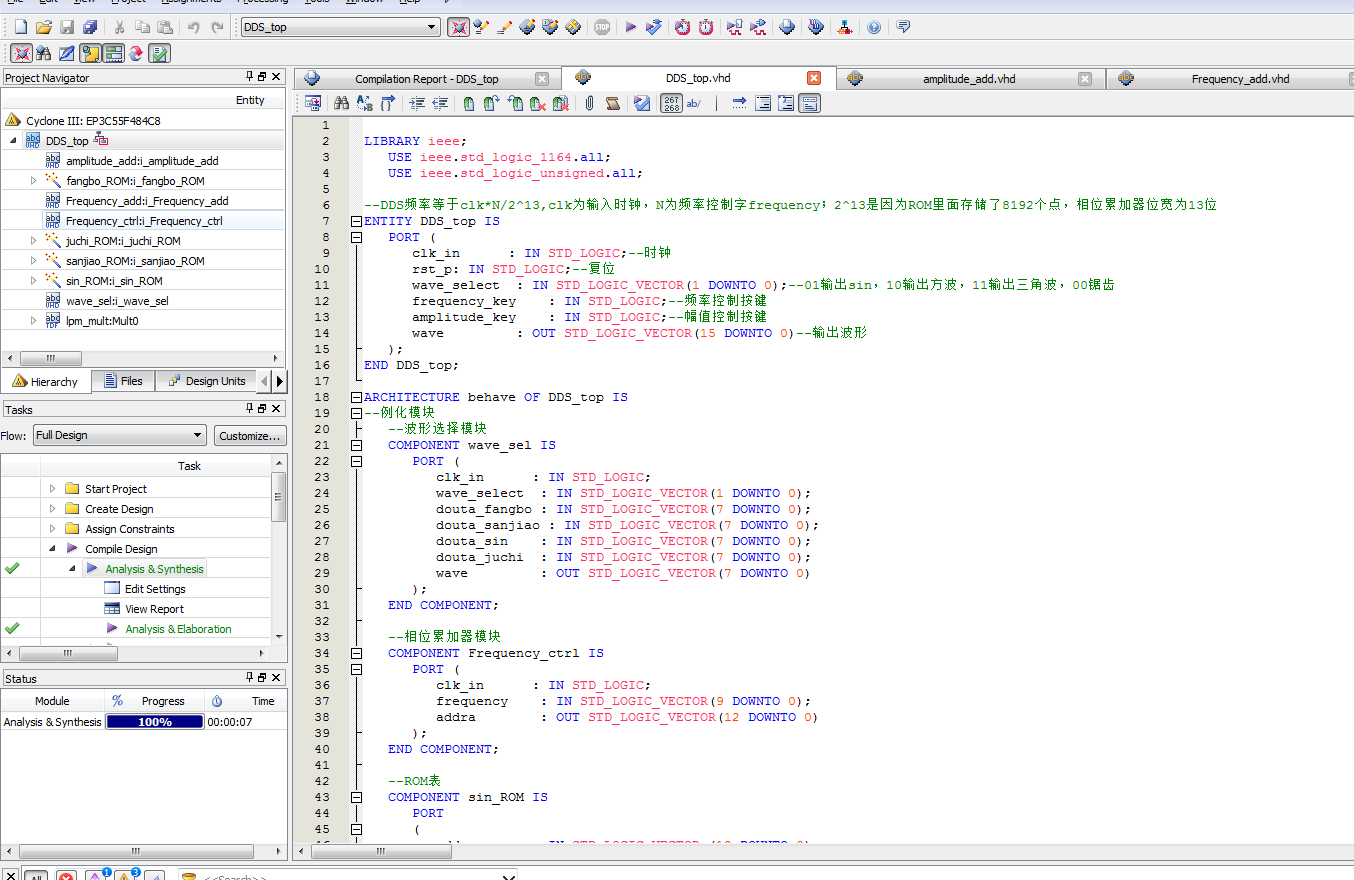

2. 程序文件

ROM IP核

3. 程序編譯

4. RTL圖

5. Testbench

6. 仿真圖

整體仿真圖

相位累加器模塊

波形選擇模塊

正弦波ROM模塊

三角波ROM模塊

方波ROM模塊

鋸齒波ROM模塊

按鍵控制頻率信號模塊

按鍵控制幅值信號模塊
